Hills NX Remote Control Kit with 3 x Stainless Steel Remotes

Model: S1890A + S1896A

The NX Remote Control Kit provides convenient wireless control of your compatible Hills Reliance or NX alarm system. Designed for seamless integration via the keypad data bus, this kit allows you to arm (away or stay), disarm, and activate panic functions at the press of a button.

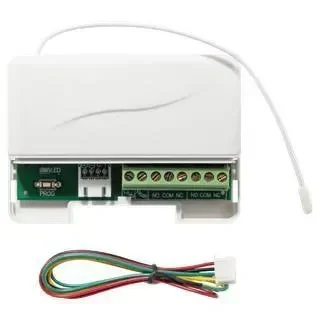

The RSI02 receiver connects directly to your alarm panel using the included 4-wire harness and is easily configured using jumper settings. In addition to alarm control, the receiver features two programmable relay outputs, allowing you to operate external devices such as garage doors or gates.

What’s Included

• 1 x RSI02 Receiver

• 3 x Stainless Steel Remotes (pre-programmed)

• 4-wire harness

• Quick-mount installation plate

Remote Specifications

• Operating Range: Minimum 50 metres (open air)

• Frequency: 433.92 MHz Keeloq rolling code

• Security: 4.3 billion code combinations with SAW resonator (+/- 75KHz)

• Transmitting Power: < 10mW

• Operating Voltage: 6V (2 x 3VDC lithium batteries)

• Battery Life: Up to 3 years (normal conditions)

• Current Draw: < 1uA standby; 12mA maximum

• Low Battery Alert: LED flashes when button is pressed

• Auto Shut-Off: Stops transmitting after 25 seconds of continuous button press

Receiver Specifications

• Operating Voltage: 9–15VDC

• Current Draw: 10mA standby; 100mA maximum

Outputs & Functions

• Data control for Arm (away/stay), Disarm and Panic via 4-wire harness

• 2 x programmable relay outputs (SPDT rated 1A 24VDC / 120VAC)

• Chirp & Flash “Switch to Ground” outputs for arm/disarm confirmation

• Supports up to 25 remotes

• Includes mounting plate for quick installation

Compatible Alarm Systems

• Hills Reliance 8

• Hills Reliance 12

• Hills Reliance 128

• DAS Alarm Systems

• Hills Reliance NX4

• Hills Reliance NX8

• Hills Reliance NX16

Upgrade your alarm system with reliable, secure remote access control.
