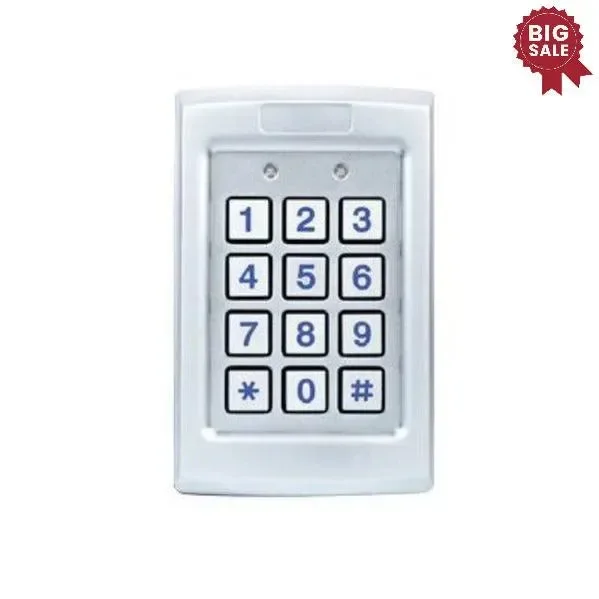

Rosslare AC-Q41HB Anti-Vandal Standalone PIN Keypad Controller

Model: AC-Q41HB

Secure your premises with the Rosslare Keypad AC-Q41HB, a robust, standalone anti-vandal PIN controller designed for high-traffic areas. With support for up to 500 PIN users, this metal-body keypad offers exceptional durability, weather resistance, and reliable standalone access control.

Its illuminated 3x4 metal keypad provides easy visibility in low-light conditions, while advanced security modes and tamper detection make it ideal for both commercial and industrial settings.

Key Features:

• 500 PIN Users: Supports up to 500 individual users with PIN-only credentials

• Anti-Vandal Construction: Heavy-duty metal body built to withstand harsh conditions

• Blue Backlit Keypad: Shiny, illuminated metal keys for visibility and user-friendly operation

• Selectable Security Levels: Choose from 3 operational security levels using designated PINs

• 8-Digit PIN Support: Set PIN lengths from 4 to 8 digits, with lockout after multiple failed attempts

• Dual Feedback: Integrated sounder and 2 tri-colour LEDs for visual and audio cues

• Quick Installation: Removable terminal blocks simplify wiring during installation

Professional-Grade Features:

• Optical Tamper Detection: Triggers alerts for unauthorised access attempts

• Built-in Heater: Prevents keypad freeze-down to -20˚C for reliable outdoor performance

• Dual Relay Outputs:

  • 2 Amp Form C Lock Relay (fail-safe and fail-secure)

  • Auxiliary 2 Amp Form C Output

• Programmable Input/Output Modes:

  • 10 options including Door Ajar, Forced Entry, Alarm Shunt, and Door Monitor

• Doorbell Key Function: Operates with '*' key when paired with Rosslare BL-D40

Power Requirements:

• Supports a wide input range of low voltage AC/DC power

Specifications:

• Brand: Rosslare

• Product Type: Keypad & Reader

• Warranty: 24 Months

🔒 Rosslare Keypad Comparison Guide – Find the Right Access Control Solution

Choosing the right Rosslare access control keypad depends on your installation type, security level, and environment. Whether you need a simple standalone PIN keypad or an advanced proximity reader with dual authentication, this guide helps you compare your options.

🔑 Key Differences Explained

• Standalone Keypads – Operate independently (ideal for single doors or gates)

• Convertible Keypads – Can work as a reader or standalone controller

• PIN Only – Entry via code

• PIN + Proximity – Card/fob and/or PIN for higher security

• Anti-Vandal Metal – Best for high-risk or outdoor environments

• Piezo Keypads – No moving parts = longer lifespan

🔒 Rosslare Standalone Keypad Comparison Table (500-User Models)

Model	Series	Keypad Type	Reader Type	Backlit	Housing	Tamper Detection	Weather Rating	Controller Mode	Notable Features
AYC-G54	Standard	Touch (Glass)	PROX / HID	Yes	Indoor/Outdoor	Yes	IP65	Yes	Sleek glass design, piezo touch keys
AYC-F54	Standard	Piezoelectric	PROX / HID	Yes	All-metal	Yes	IP65	Yes	Durable metal, back cover tamper
AYC-E55	Standard	Standard Plastic	PROX / HID	Yes	Plastic enclosure	Yes	IP65	Yes	Budget-friendly, tamper-resistant
AYC-Q54B	Standard	Metal Piezo Keypad	PROX / HID	Yes	Metal (Vandal-Resistant)	Yes	IP65	Yes	Rear cable, optical tamper, blue backlight
AYC-E60B	GoPROX® Series	Plastic Keypad	PROX / HID	Yes	Indoor/Outdoor	Yes	IP65	Yes	Converts to standalone with PS-x5 PSU
AYC-F60	GoPROX® Series	Piezoelectric	PROX / HID	Yes	Metal	Yes	IP65	Yes	HID-compatible, secure relay outputs
AYC-G60	GoPROX® Series	Touch Glass Keypad	PROX / HID	Yes	Sleek Glass + Plastic	Yes	IP65	Yes	Slim glass design, dual-authentication ready
AYC-Q60	GoPROX® Series	Metal Piezo Keypad	PROX / HID	Yes	Anti-Vandal Metal	Yes	IP65	Yes	Card + PIN, 3 security modes, advanced I/O

📍 Need Help Choosing?

Not sure which keypad suits your project?
CTC Communications can recommend the right solution based on your site, security level, and budget.

👉 Contact our team for expert advice or a custom access control package.

🔒 Shop at CTC Communications for the best deals on genuine Rosslare access control systems, trusted by professionals across Australia.

💡 For firmware and manuals, visit rosslaresecurity.com.
